Be regarded as the core lens for the new generation of temperature adaptive infrared optical system, HWS chalcogenide infrared glass has the characteristics of excellent infrared transmittance, low dispersion and low thermal refractive index coefficient. It can be used with other infrared optical materials and applied to infrared optical system which needs chromatic aberration correction. Working wavelength range is (3-5)μm and (8-12)μm. This series of glass can be used in infrared night vision, infrared temperature measurement, infrared guidance, infrared detection and other fields.

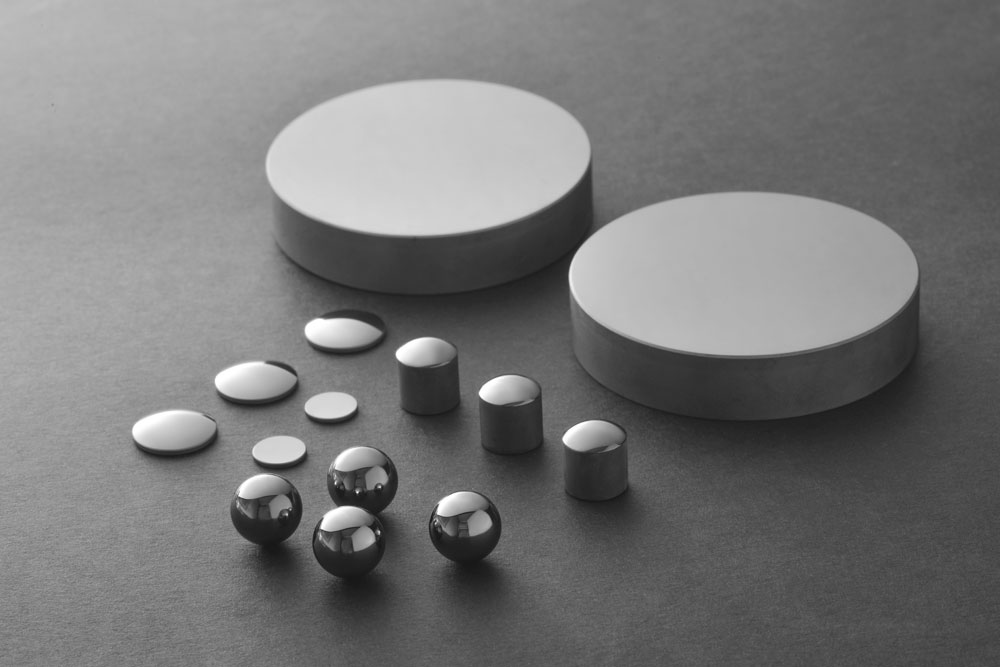

The glass is available in the form of spherical lens, gob and blocks with diameter ＜150mm.
The glass is available in the form of spherical polished lens, gob and blocks with diameter ＜150mm. The specifications are shown in the following table：
Blocks | |

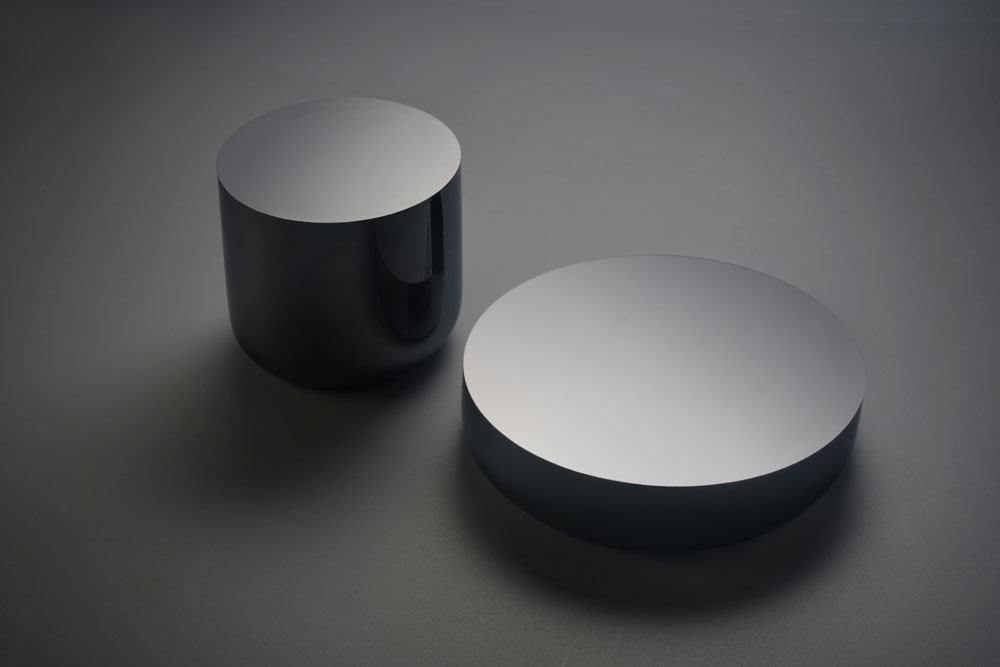

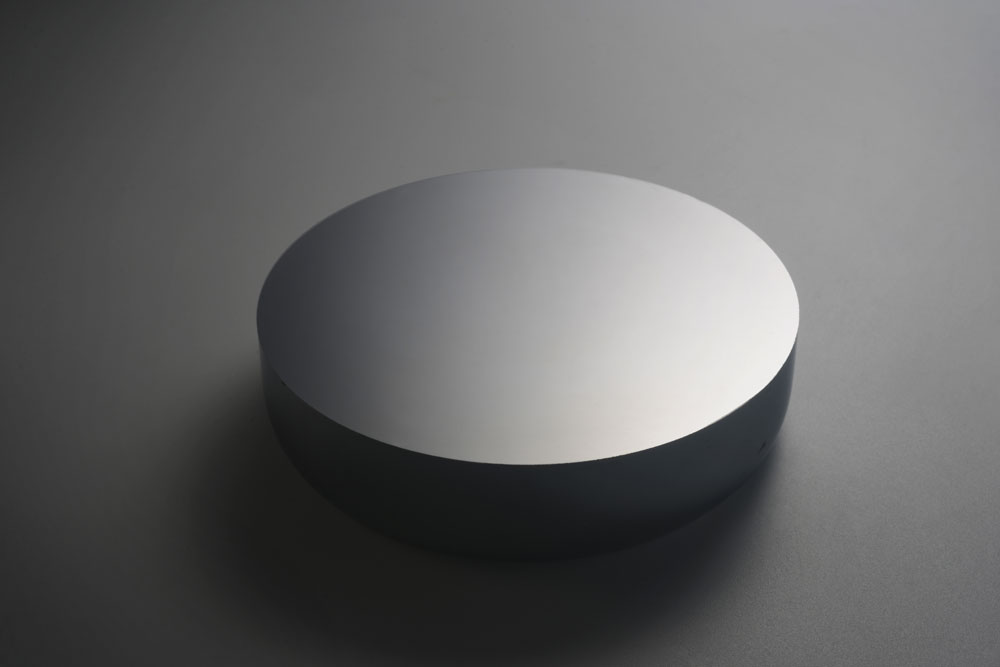

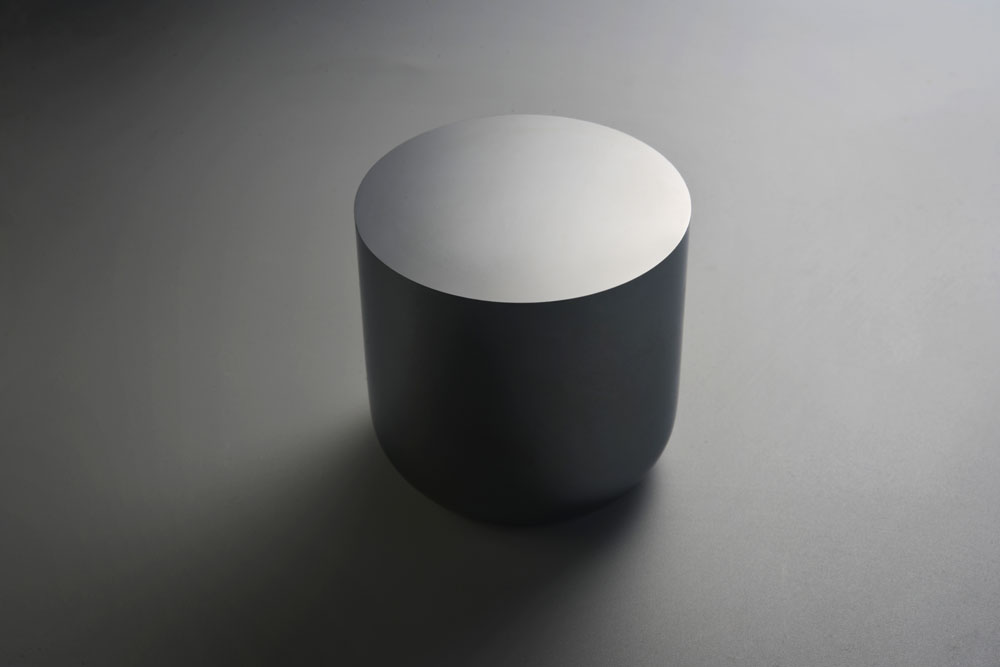

Supply forms: | Biplanar blanks ，spherical blanks |
Dimensions: | OD(outer diameter): Φ（2～100）mm Thickness：2mm～50mm |
Optical components | |
Supply forms: | Spherical polished lens，polished gob |

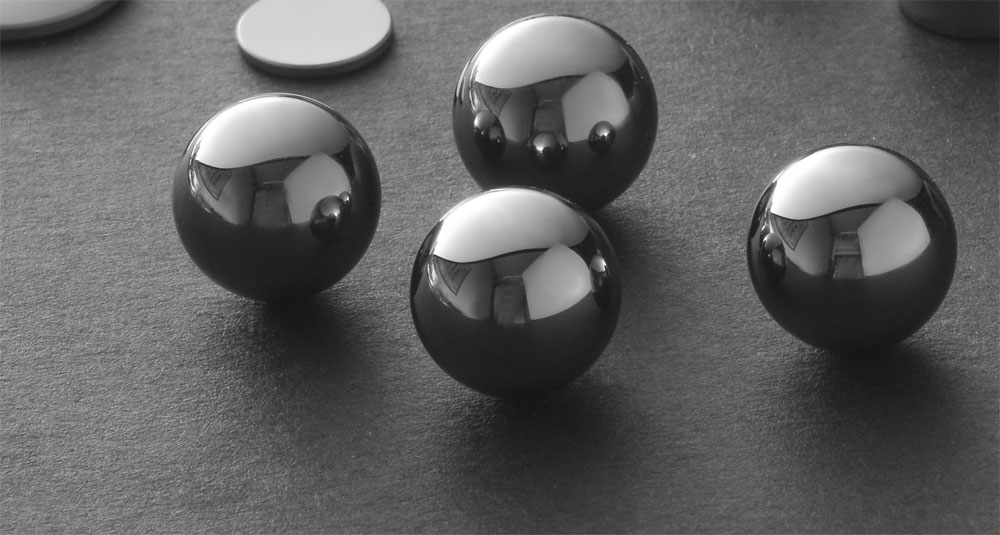

Dimensions: | Spherical polished lens：Φ（5～100）mm Polished gob：Φ（1～20）mm |
Note: other supply forms and dimensions upon request. Please contact us.
